Setting Up Your Project With URP

warning

This feature is only available from JMRSDK 4.24.1 onwards

Video Tutorial
  • Import the JMRSDK_URP.unitypackage

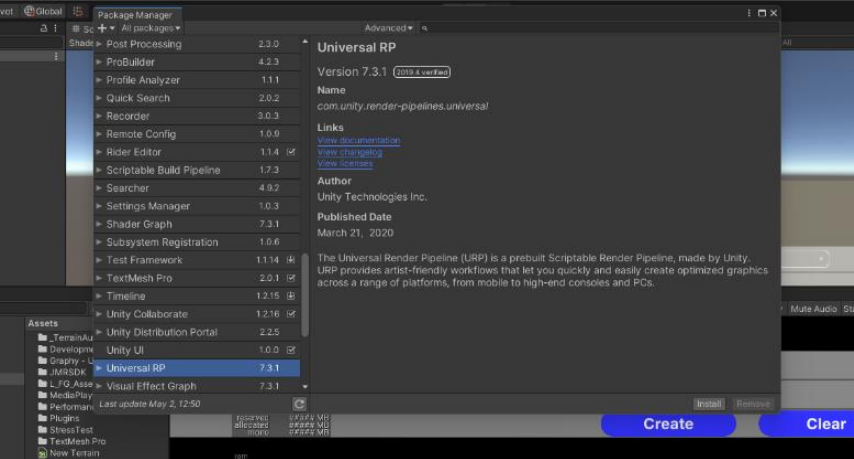

  • Install URP in your project using the following steps: Window -> Package Manager -> Universal RP

URP Setup 1

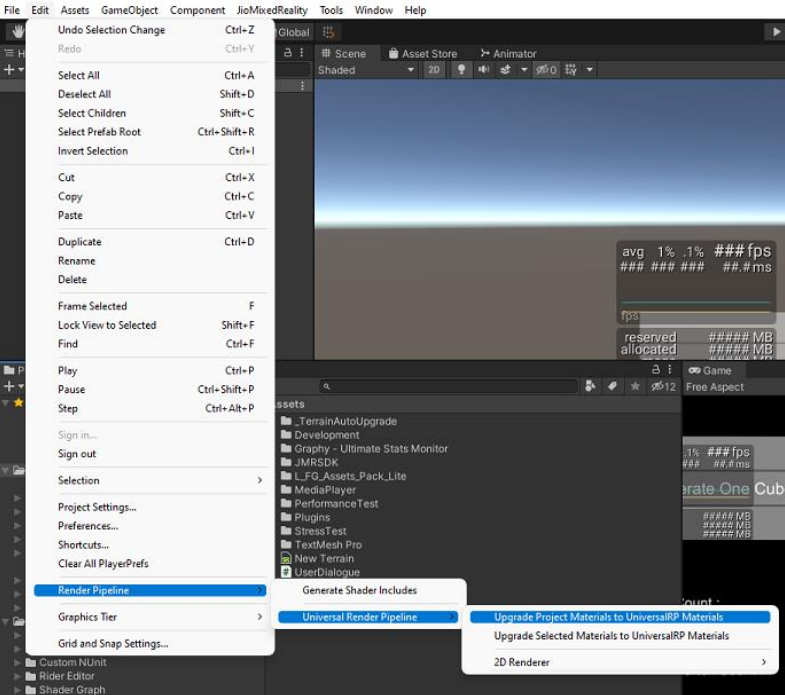

  • Upgrade materials in the current project to URP materials using the following steps: Navigate to Edit -> Render Pipeline -> Universal Render Pipeline -> Upgrade Project Materials to UniversalRP Materials

URP Setup 2

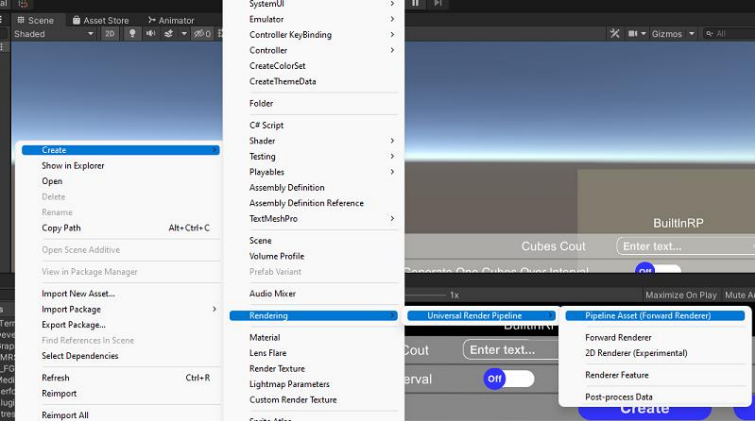

  • Create UniversalRenderPipeline Asset: Right Click in the Asset Folder then Create -> Rendering -> Universal Render Pipeline -> Pipeline Asset (Forward Renderer)

URP Setup 3

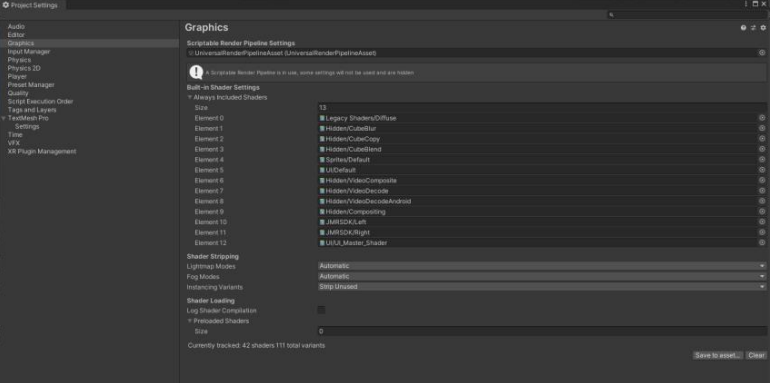

  • Assign the pipeline asset you have created to the graphic settings: Edit -> Project Settings -> Graphics

URP Setup 4

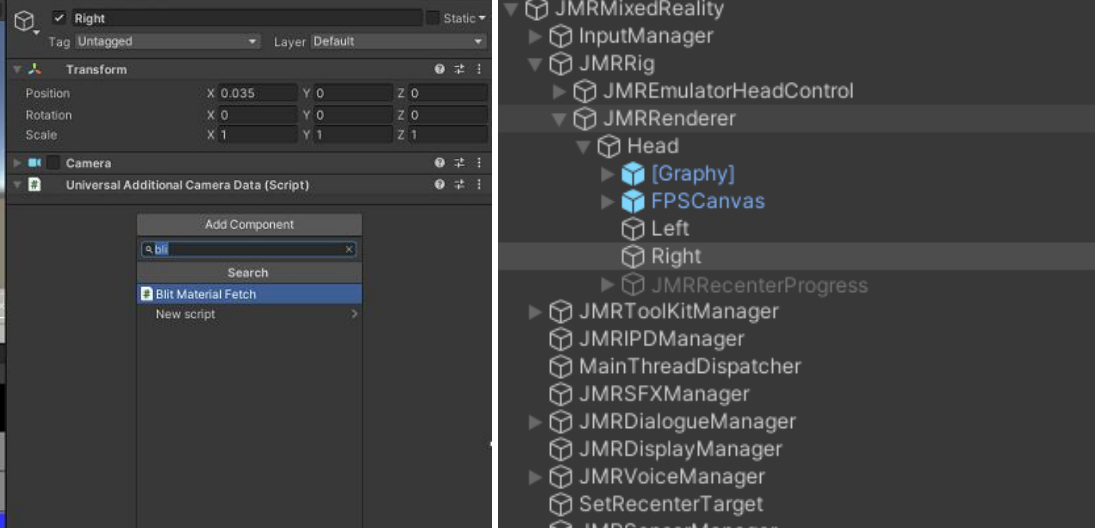

  • Add BlitMaterialFetch script to the Left and Right Camera in JMRMixedReality prefab under JMRRig -> JMRRenderer -> Head. This script will be in the JMRSDK_URP_Extension folder which you will get after installing the JMRSDK_URP package.

URP Setup 5

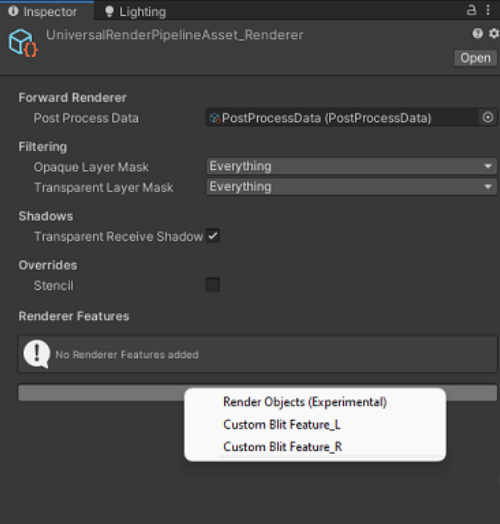

  • Add the custom render features, CustomBlitFeature_L & CustomBlitFeature_R to your pipeline asset renderer. In this case, we have UniversalRenderPipelineAsset_Renderer.

URP Setup 6

  • Replace the Standard shader in JMRSDK>Core>Resources>Shader with the one from JMRSDK_URP_Extension folder.
