Shape System

Shapes are a fundamental element that define the theme system.

Tesseract Mixed Reality Design uses rounded curved edges style for exuding simplicity and comfort.

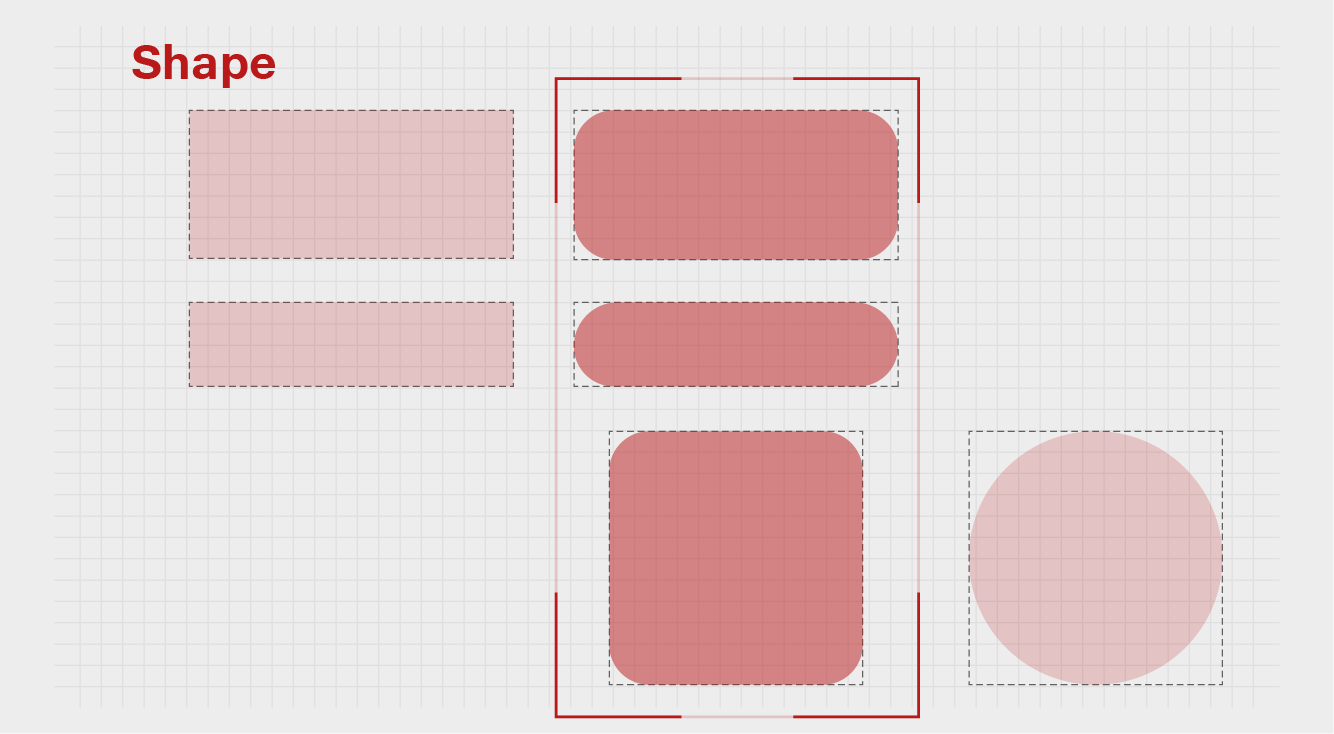

Shape System Overview

The architecture should define an icon pack format that can be expanded later on to include more variations of design assets that can be loaded/changed during runtime.

Layout​

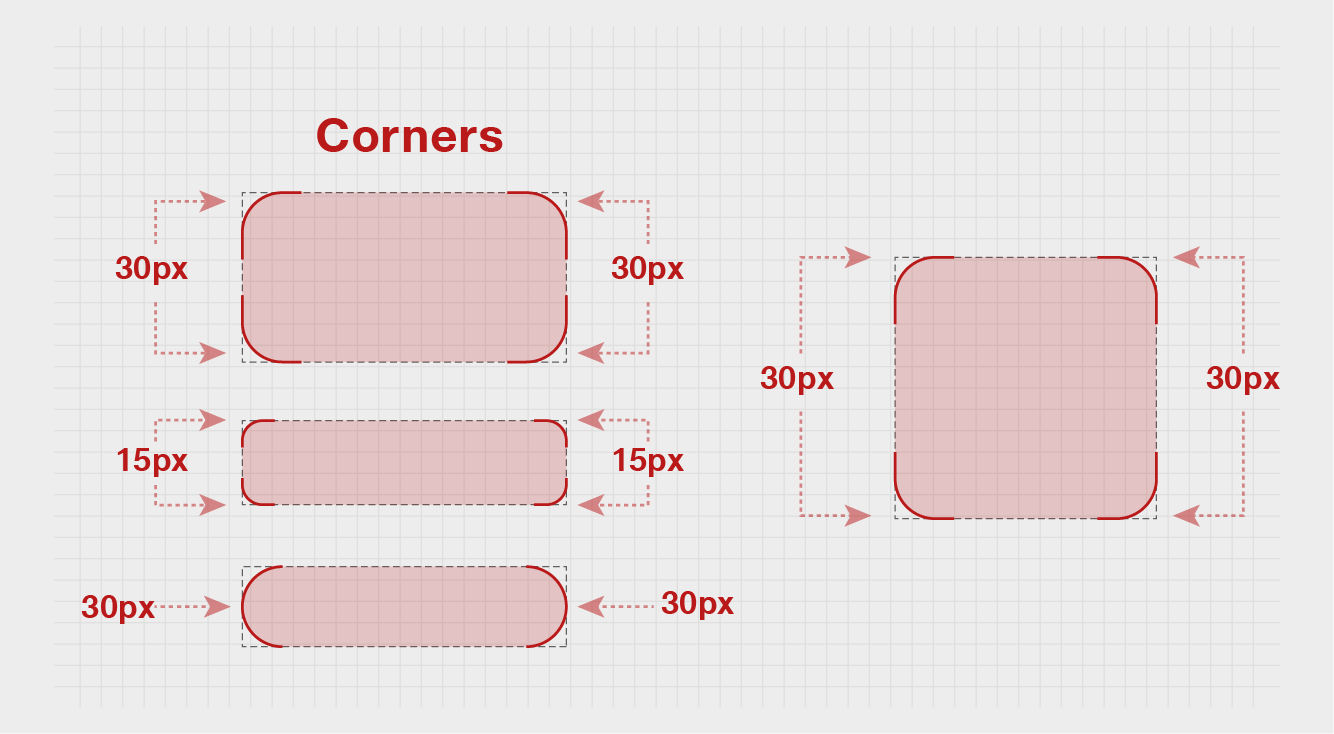

Shape Guidelines

Square/Rectangle Shape (Round):
Corner edges = 30px & 15px ( depending on the size of the shape on Display)

Eg.
1. If it is a Button or Box- 30 px corner is suggested.
2. If its a Text box- 15 px corner is suggested.

Usage ​

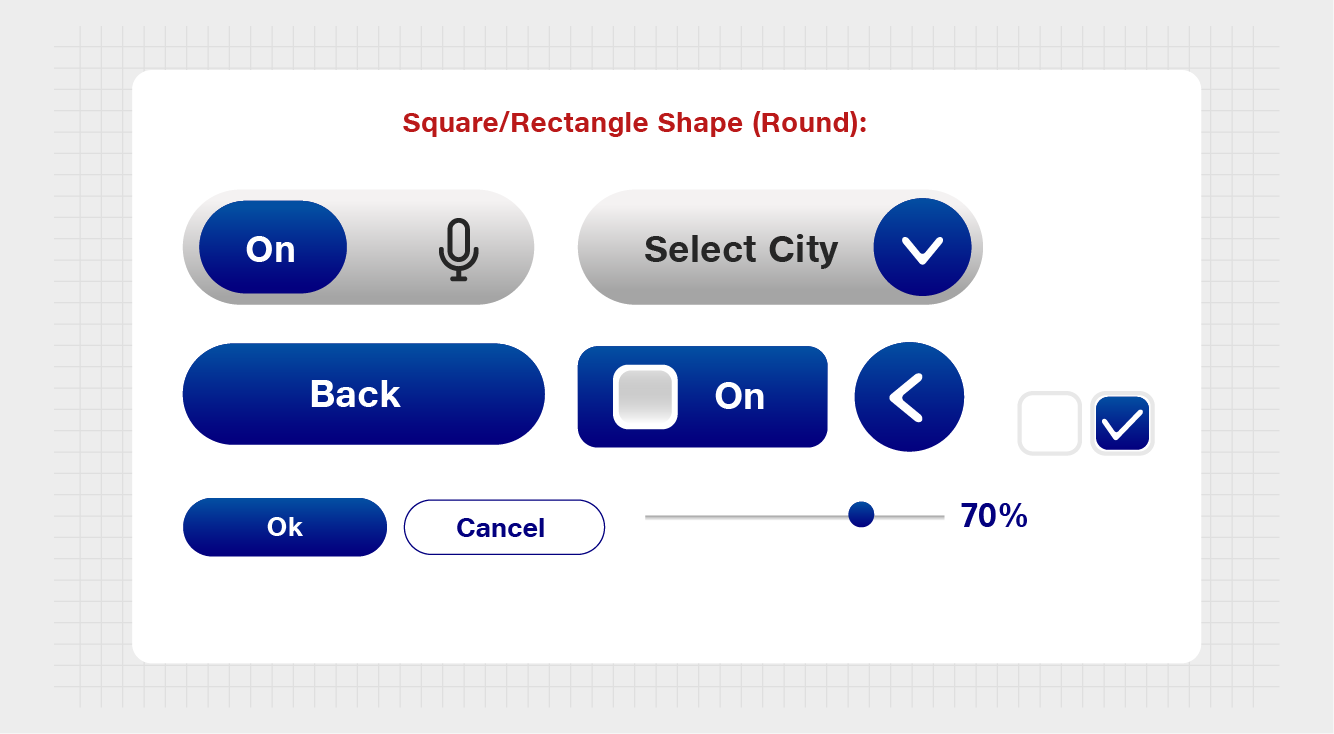

Shape Examples
